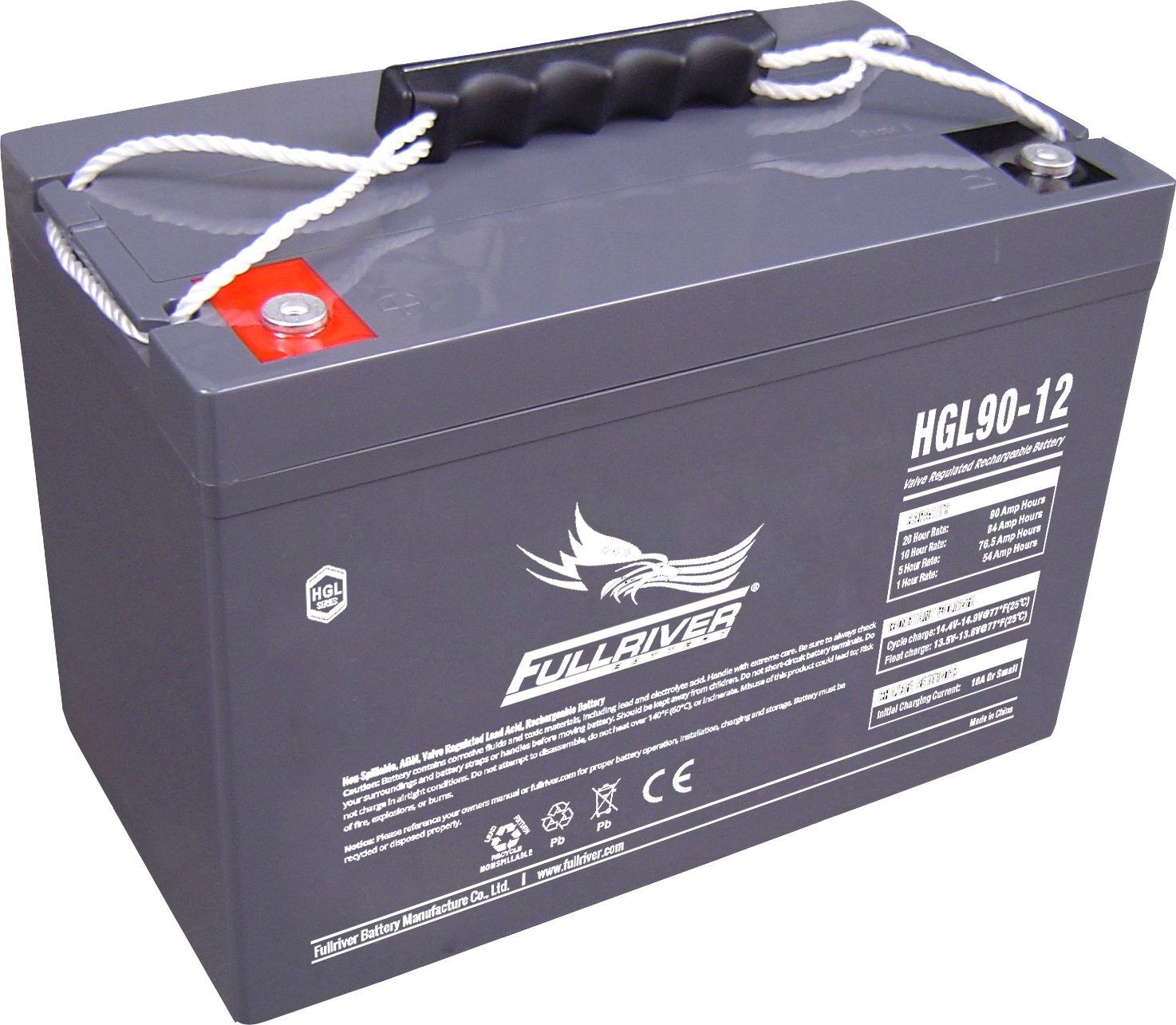

HGL90-12
General Purpose AGM Batteries
HGL SERIES BATTERY SPECS
Weight(Kg) | 28.20 Kg |
Dimensions(mm) | 307×169×211×215 mm |
Voltage | 12-Volt |
Capacity @ 1hr Rate | 54.0 AH |
Capacity @ 3hr Rate | 67.5 AH |
Capacity @ 5hr Rate | 76.5 AH |
Capacity @ 10hr Rate | 84.0 AH |
Capacity @ 20hr Rate | 90.0 AH |
Grid alloy | Calcium / Tin lead alloy |
Plates | Flat Pasted |
Separator | Absorbant Glass Mat |
Active material | Very high purity lead |
Case Type | ABS Plastic - |
Terminal Type | M6 |
Terminal Torque | 40～55 In-lbs |
Maximum Charge Current (A) | 20% of C20 |
Internal Resistance(mΩ) | 4.10 mΩ |
Cyclic Charge voltage | 2.40-2.45VPC （20-25°C） |
Float Charge voltage | 2.25-2.30VPC （20-25°C） |
